embedded interactive 3d MODELS

Our eWorkbooks incorporate interactive graphics which allows the student to rotate and zoom in/out on selected graphics.  Presented below is a prototype 3D Model.  With an ability to interact with graphics, our students cognitive understanding of complex shapes and structures (such as machinery) will be improved by offering views of these objects from every angle.

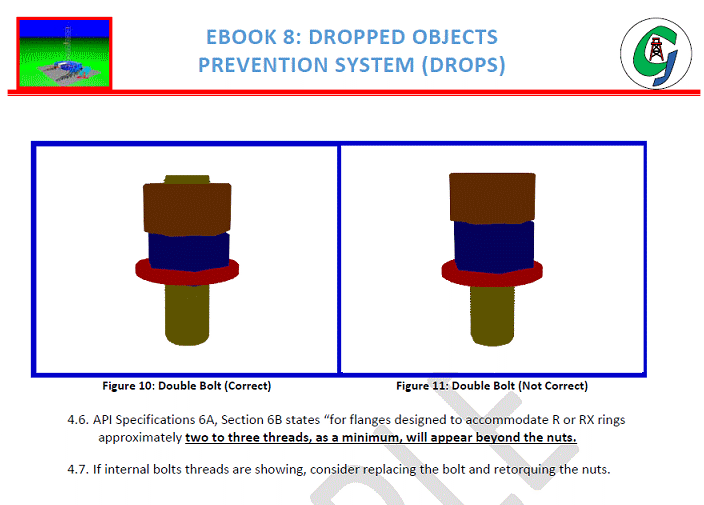

Figures 10 and 11 are shown in the resting position, as the eBooklet is opened.

Figures 10 and 11 are shown in the resting position, as the eBooklet is opened.

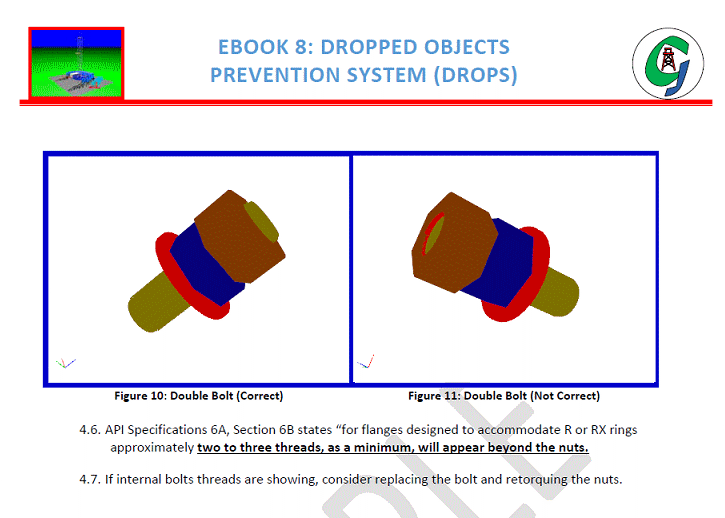

Figures 10 and 11 are shown after interactively rotating the equipment to improve the understanding of API Specifications 6A, Section 6B.

Figures 10 and 11 are shown after interactively rotating the equipment to improve the understanding of API Specifications 6A, Section 6B.
